Introduction

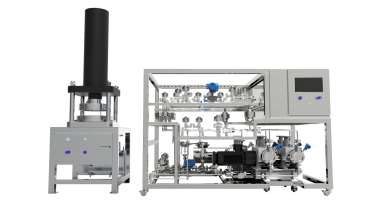

QuikSep EX-Prep is an independently developed explosion-proof high-pressure preparative chromatography system. Its core includes custom DAC columns, diaphragm/plunger pumps, online UV-Vis detector and chromatography software, with expandable accessories such as filters, mixers and fraction collectors to meet various scale requirements.
Featuring high resolution, good selectivity, continuous elution, high yield, high purity and easy operation, it is widely used for active ingredient purification in natural products, bioengineering, pharmaceuticals and fine chemicals. The system integrates four modules: dynamic axial compression column, high-pressure pump, control system and automatic fraction collector, ensuring high precision, stability and usability.
Feature
1.?Excellent reproducibility and high column efficiency
2.?Complete solution provided
3.?Compliant with GMP and FDA requirements
4.?Pneumatic pressure control for explosion-proof operation
Specification
Item | Parameters |
Model | EX-Prep 150/200 | EX-Prep 300 | EX-Prep 400～500 | EX-Prep 600 | EX-Prep 800 | EX-Prep 1000/1100 | EX-Prep 1200 |
System Pump | Plunger pump | Diaphragm pump |
Maximum Flow Rate | 200L/h | 293 L/h | 516L/h | 1200L/h | 1979/3000L/h | 1979/3000L/h | 3000/5000L/h |
Precision | Gradient Range：5%~95%，Flow Rate Error≤±1% |
Compatible Dynamic Column | DAC150/200 | DAC300 | DAC400～500 | DAC600 | DAC800 | DAC1000/1100 | DAC1200 |
Operating Pressure | 10MPa |
Weight | 1100 kg | 2000?kg | 2300 kg | 2500 kg |
Explosion-proof Standard | ExdII BT4 |
