Introduction

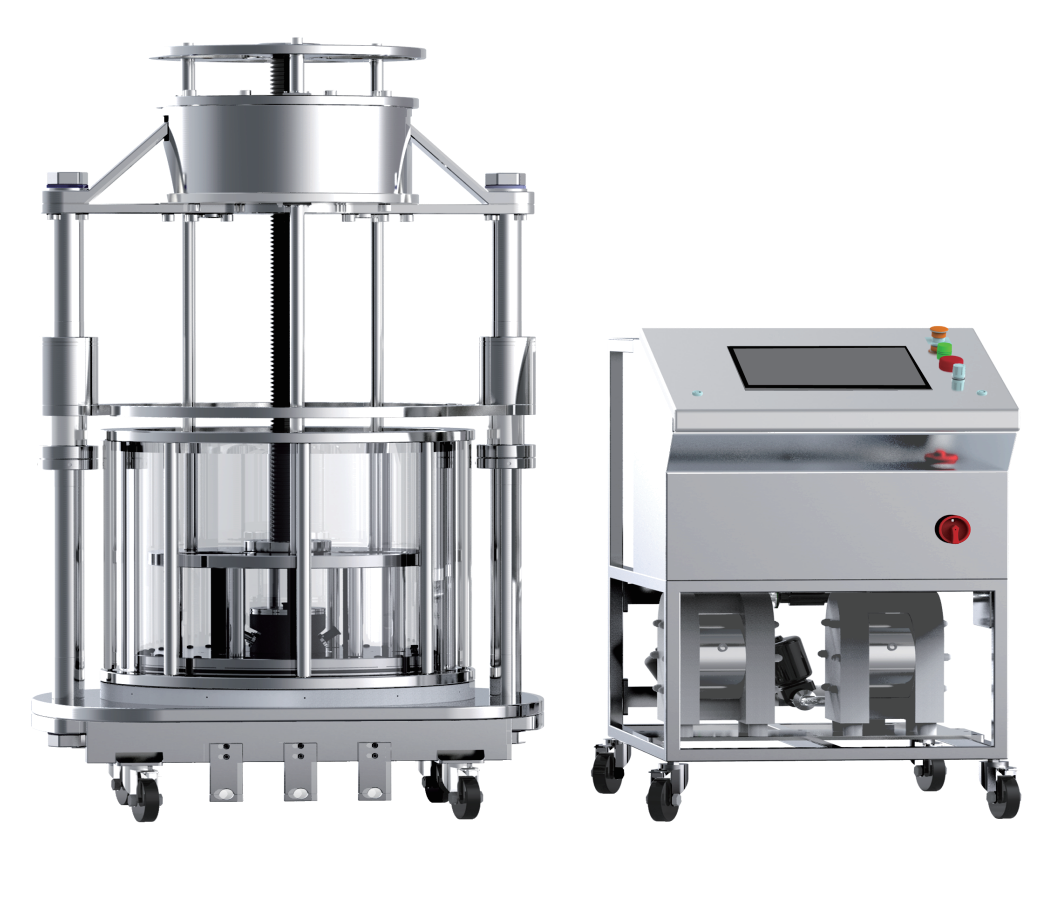

The QuikSep Auto automated column chromatography system features intelligent control and high-efficiency operation. It precisely adjusts column head lift through motor movement based on position or pressure feedback, and enables efficient packing and convenient recovery of chromatography media via valves and pneumatic diaphragm pumps.With strong compatibility, it can connect seamlessly with various chromatography systems to support drug separation and purification.The new integrated column platform combines workstation and column in one unit, supporting automatic packing, media recovery, column cleaning, column rotation and easy disassembly of stainless steel frits, providing a full automated solution from column packing to routine maintenance.
Feature
1.?Flexible packing: supports pumping & suction modes for various processes.
2.?Intelligent lifting: precise auto column head control via position/pressure feedback.
3.?Automatic handling: full auto packing & recovery of media via valve-pump system.
4.?Wide compatibility: seamless connection to various chromatography systems.
5.?Integrated platform: automates packing, recovery, cleaning and maintenance.
Specification
?
AC450 | AC630 | AC800 | AC1000 | AC1200 | |
Column Inner Diameter (mm) | 446 | 630 | 800 | 1000 | 1200 |
Column Height (mm) | 550/800 | ||||
Cross-sectional Area (cm2) | 1561 | 3116 | 5024 | 780 | 11304 |
Recommended Packing Height (mm) | 550mm：50-350 800mm：300-550 | ||||
Resin Volume (L) | 7.8-55 (550mm) 46.8-85.9 (800mm) | 15.6-109 (550mm) 93.5-171.4 (800mm) | 25.1-176 (550mm) 150.7-276.3 (800mm) | 39.3-274.8 (550mm) 235.5-431.8 (800mm) | 56.5-395.6 (550mm) 339.1-621.7 (800mm) |
Maximum Operating Height (mm) | 2300(550mm) 2550(800mm) | 2500(550mm) 2750(800mm) | 2650(550mm) 2900(800mm) | 2950(550mm) 3200(800mm) | 3200(550mm) 3450(800mm) |
Sealing & Protection Grade | IP65 | ||||
Ambient Temperature | 2-40℃ | ||||
Wetted Material | 316L、PP、EPDM、Acrylic、Silica gel | ||||
? ? ? ?????
