Introduction

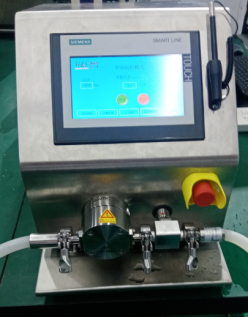

The bio-intelligent pump adopts a quaternary diaphragm pump for liquid delivery, equipped with a pressure sensor to support constant-pressure and constant-flow transmission. With an intelligent HMI and professional control software, it provides complete solutions for liquid handling in biopharmaceutical processes.
Feature
1.?User-friendly HMI with touch-operated software interface
2.?Supports manual and automatic control modes
3.?Provides timer and dosing functions
4.?Enables online flow calibration
5.?Displays real-time pressure curves
6.?Synchronized software and control system, connectable to central control system (optional)
Specification
?
No. | Model | 100S | 168S | 600S | 1200S | 4400S |
1 | Flow Rate Range | 0.6-100L/h | 1-168 | 6-600 | 60-1200 | 300-4000 |
2 | Flow Rate Accuracy | ±2%/0.5L/h | ±2%/1L/h | ±2%/3L/h | ±2%/6L/h | ±2%/20L/h |
3 | Maximum Pressure Resistance（20℃） | 6bar | ||||
4 | Pump Body Material | SS316L?1.4435/1.4539 Check valve and O-ring:EPDM Diaphragm:EPDM/PP | ||||
5 | Pipe Inner Diameter | 1/4"TC | 1/4"TC | 1/2"TC | 3/4"TC | 1.5"TC |
6 | CIP | 0.1-1M NaOH | ||||
7 | Control System | S7-200 smart+SMART 700 IE V3 | ||||
8 | Power Supply | 220VAC 50Hz | 380VAC 50Hz | |||
9 | Power | 0.2kW | 1kW | 2.2kW | ||
